High Purity Bismuth

Description

High Purity Bismuth 5N 6N, an odorless, silver white or reddish metallic luster solid with atomic weight 208.98, density 9.80g/cm³ and melting point 271.4°C, is a non-toxic and green metal, and stable in both dry and moist air with lower oxidation at room temperatures, and do not react with oxygen or water. High purity bismuth can be purified to 99.999% and 99.9999% by electrolytic refining from commercially marketed bismuth metal, zone-refining process and by crystallization in electromagnetic fields, which has a very high electrical resistance and the highest Hall effect. High Purity Bismuth is primarily used in the manufacturing of compound semiconductor materials, high purity alloys, thermoelectric converting elements, electronic refrigerating elements, and liquid carrier for the cooling in the atomic reactor etc.

Delivery

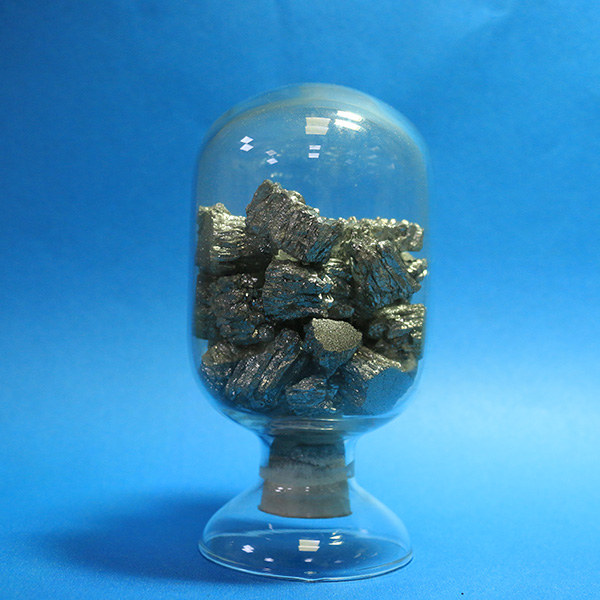

Western Minmetals (SC) Corporation can provide high purity bismuth 99.999% and 99.9999% in size of shot, lump, chunk, ingot, bar and crystal, and bismuth shot 99.9%, 99.99% and 99.995% purity in size of tear drop 1-6mm and 1-10mm, with package in composite aluminum bag with carton box outside, or as customized specification to reach the perfect solution.

Inquiry now

Details

Tags

Technical Specification

Bi

High Purity Bismuth 5N 6N 99.999% and 99.9999% at Western Minmetals (SC) Corporation can provided in size of shot, lump, chunk, ingot, bar and crystal, and bismuth shot 99.9%, 99.99% and 99.995% purity in size of tear drop 1-6mm and 1-10mm, with package in composite aluminum bag with carton box outside, or as customized specification to reach the perfect solution.

Commodity	Standard Specification
	Purity		Impurity (ICP-MS or GDMS Test Report, PPM Max each)
High Purity Bismuth	5N	99.999%	Cd/Au/Ni 0.2, Zn/Al/Mg/Pb/Fe/As/Sn/Cr 0.5, Ag/Cu 1.0	Total ≤10
	6N	99.9999%	Cd/Zn/Al/Mg/Pb/Fe/As 0.1, Ag/Cu 0.02, Ni 0.05	Total ≤1.0
Bismuth Shot	3N	99.9%	Fe/As/Ab 0.001, Ag 0.0015, Cu 0.003, Cl 0.004, Zn 0.005, Zn 0.008, Ag 0.015	% Max each
	4N	99.99%	Cu/Pb/Fe 0.001, As/Te/Sb 0.003, Ag 0.004, Zn 0.005, Cl 0.015	% Max each
Size	5N 6N 65x10x15mm/110g or 50x10x100mm/450g bar, or 1kg Chunk, 1-6 mm shot or eye tear shape granule

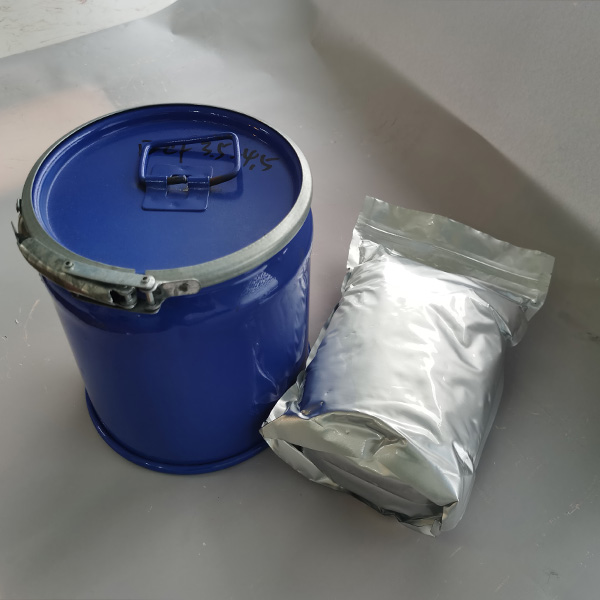

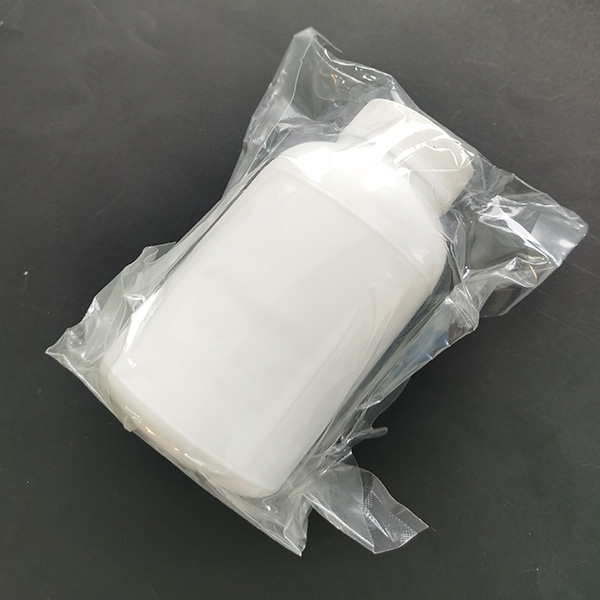

Packing	0.5kg, 1kg, 2kg or 5kg in sealed composite aluminum bag, or plastic bag inside, carton box or plywood case outside.

Atomic No.	83
Atomic Weight	208.98
Density	9.8g/cm³
Melting Point	1560°C
Boiling Point	2713°C
CAS No.	7440-69-9
H.S Code	8106.0010.91

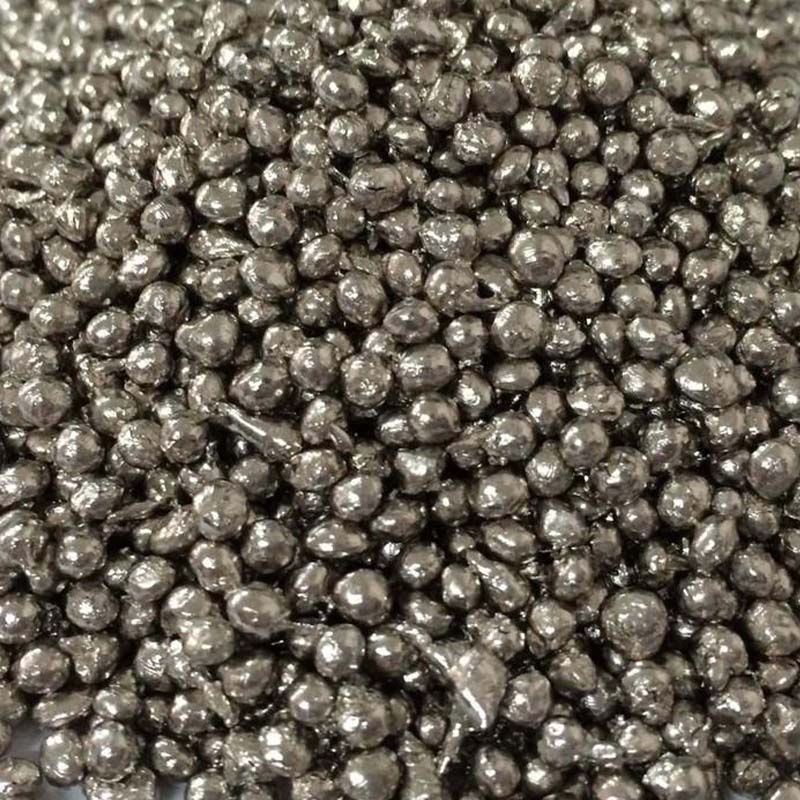

Bismuth Shot 3N, 3N5, 4N, 5N ( 99.9%, 99.99%, 99.995% and 99.999%) purity, tear drop shaped of 1-6mm in diameter, is a non-toxic and green metal to human body. Bismuth shot is made by the complex process of electrolytic refining, vacuum distillation, zone melting and granulating under inert gas protection from commercially marketed metal bismuth. Bismuth Shot is for the production of pharmaceuticals and cosmetics, chemical reagent, vanadium cell, to replace lead as lead-free bullets and solder, as additive of titanium alloy, low-carbon steel and aluminum smelting to improve alloy’s machinability, as well as normally alloyed with tin for the preparation of high-accuracy gears or bearings in mechanical industry to increase the durability and sustainability.
