Silicon Oxide

Description

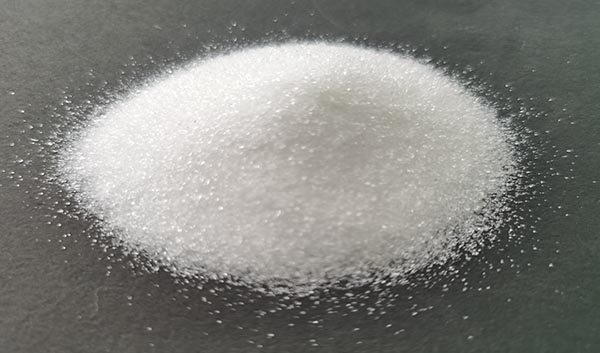

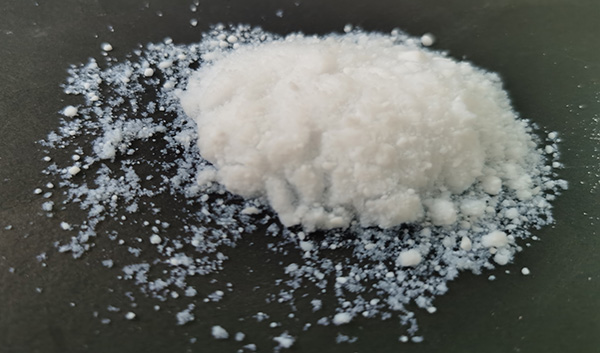

Silicon Oxide SiO2, also known as Silicon Dioxide, Silica and Quartz, a white and odorless powder, CAS No.7631-86-9, melting point 1710°C, density 2.2-2.6g/ml, poorly soluble in water, is a kind of low index material used more widely than any other crystalline compound. High Purity Silicon Oxide SiO2 is purified to 5N 99.999% micron powder which is stable in chemical natureNano Particle Silicon Oxide SiO2 99.9% in size of 7nm and 20nm is white amorphous tasteless, pollution-free spherical powder, which possesses many special characteristics such as quantum size effect, surface effect, macro-quantum tunnel effect. Silicon Oxide SiO2 at Western Minmetals (SC) Corporation can be delivered in size of -200+500 mesh submicron powder, and 7nm or 20nm nano powder in package of 25kg in cardboard drum with plastic bag inside, or as customized specification to the perfect solutions.

Applications

High Purity Silicon Oxide SiO2 or Silica or Quartz, 99.999% purity micron powder, is primarily used to produce optical glass, quartz glass, optical fiber for telecommunication, optical instrument, czochralski crucible, quartzware machine parts, optical coating and thin film coating materials, electronic components, lubricants, anti-adhesion agents, and defoaming agent etc. SiO2 can also be used in multi-layer coatings for laser mirrors, anti-reflection coatings, beam splitters, and thin-film capacitors. Nano Particle Silicon Oxide SiO2 99.9% is for the preparation of catalyst, filters, medicine, electronic package material, magnetic medium, fiber reinforced composite, ceramic, cosmetics, antibacterial materials etc.


Details

Tags

Technical Specification

SiO2

Appearance Crystal
Molecular Weight 60.08
Density 2.648 g/cm3
Melting Point 1600-1725 °C
CAS No. 7631-86-9



No.  Item Standard Specification
1 Purity SiO2 ≥  Impurity  (PCT or PPM Max each)
2 3N 99.9% Ca/Mg/Na/Cu/Mn/Co/Pb/N/S 0.001, Fe/Ni/K 0.002   PCT %
5N 99.999% Cr/Mn/Co/Sn/Na/Ni/Cu/V 0.5, Al/Fe/Pb/Ti/Mg 1.0  Total ≤10
3 Size 7nm, 20nm powder for 3N purity,  -200+500meah powder for 5N purity

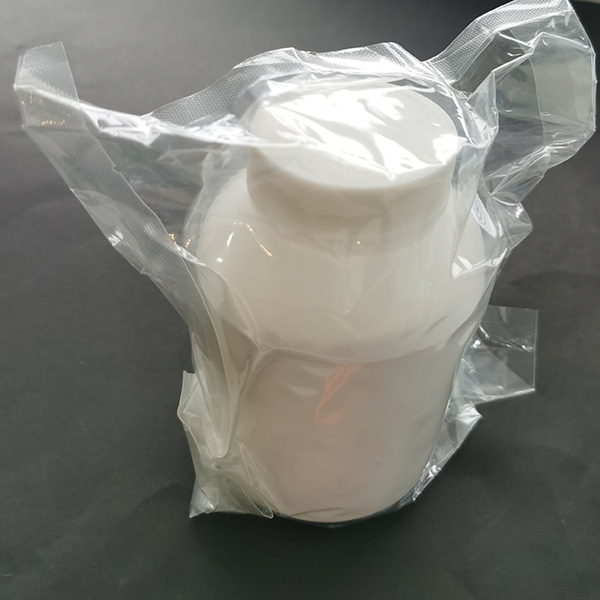

4 Packing 25kgs in woven bag or cardboard drum with plastic bag inside

High Purity Silicon Oxide SiO2 99.999% 5N and Nano Particle Silicon Oxide SiO99.9% 3N at Western Minmetals (SC) Corporation can be delivered in size of -200+500 mesh submicron powder, and 7nm or 20nm nano powder in package of 25kg in woven bag or cardboard drum with plastic bag inside, or as customized specification to the perfect solutions.

High Purity Silicon Oxide SiO2 or Silica or Quartz, 99.999% 5N purity micron powder, is primarily used to produce optical glass, quartz glass, optical fiber for telecommunication, optical instrument, czochralski crucible, quartzware machine parts, optical coating and thin film coating materials, electronic components, lubricants, anti-adhesion agents, and defoaming agent etc. SiO2 can also be used in multi-layer coatings for laser mirrors, anti-reflection coatings, filters, beam splitters, and thin-film capacitors. Nano Particle Silicon Oxide SiO2 99.9% min, nano particle grade, is for the preparation of catalyst, filters, medicine, electronic package material, magnetic medium, fiber reinforced composite, ceramic, cosmetics, antibacterial materials and pigment etc.

Silicon Oxide (10)

Silicon Oxide (8)

Silicon Oxide (2)

PC-28

Procurement Tips

  • Sample Available Upon Request
  • Safety Delivery of Goods By Courier/Air/Sea
  • COA/COC Quality Management
  • Secure & Convenient Packing
  • UN Standard Packing Available Upon Request
  • ISO9001:2015 Certified
  • CPT/CIP/FOB/CFR Terms By Incoterms 2010
  • Flexible Payment Terms T/T D/P L/C Acceptable
  • Full Dimensional After-Sale Services
  • Quality Inspection By Sate-of-the-art Facility
  • Rohs/REACH Regulations Approval
  • Non-Disclosure Agreements NDA
  • Non-Conflict Mineral Policy
  • Regular Environmental Management Review
  • Social Responsibility Fulfillment

Silicon Oxide SiO2 Micro & Nano
