Tantalum-Niobium Carbide TaNbC

Description

Tantalum Niobium Carbide TaNbC, dark grey color, is a solid solution powder of tantalum carbide and niobium carbide by carbonizing and solutionzing process, melting point 3686°C. With the characteristics of zirconium carbide and niobium carbide, it is a high temperature structural material with high melting point, high hardness, high strength, corrosion resistance, good thermal conductivity and good toughness, and has stable chemical properties with no odor, no toxic, no corrosive and insoluble in water. Tantalum Niobium Carbide TaNbC solid solution powder can be extensively used as raw material applied in hard alloys industry for the production of cemented carbide tools as an additive to effectively inhibit the grain growth of hard alloys. Tantalum Niobium Carbide is also usually used for the preparation of refractory material, high-temperature, wear-resistant and spraying material, welding material, high-temperature radiation resistant material, metal ceramic material, high-temperature vacuum devices in mechanical processing, electronic information, metallurgy and minerals, aerospace and other industry fields.

Delivery

Tantalum Niobium Carbide TaNbC at Western Minmetals (SC) Corporation can be delivered with different proportion of TaC/NbC 90:10, 80:20, 70:30, 60:40, 50:50 in size of powder 1.0-1.2, 1.2-1.5, 1.5-3.5 micron or as customized specification, package of 2kg in composite bag with 20kg net in iron drum.

Inquiry now

Details

Tags

Technical Specification

Niobium Tantalum Carbide

Tantalum Niobium Carbide TaNbC at Western Minmetals (SC) Corporation can be delivered with different proportion of TaC/NbC 90:10, 80:20, 70:30, 60:40, 50:50 in size of powder 1.0-1.2, 1.2-1.5, 1.5-3.5 micron or as customized specification, package of 2kg in composite bag with 25kg net in iron drum.

No.	Item		Standard Specification
1	Tantalum Niobium Carbide		90:10	80:20	70:30	60:40	50:50
2	Chemical %	Ta	84.4±1.5	71.5±1.5	65.6±1.5	56.0±1.3	46.9±1.3
		Nb	8.85±1.0	21±1.0	26.6±1.2	35.0±1.3	44.3±1.5
		T.C	6.75±0.3	7.3±0.3	7.8±0.3	8.2±0.3	8.8±0.3
		F.C	≤0.15	≤0.15	≤0.15	≤0.15	≤0.15
3	Impurity PCT Max Each	Co/Mo/Cr	0.10	0.10	0.10	0.10	0.10
		Si	0.02	0.02	0.02	0.02	0.02
		Fe	0.15	0.15	0.15	0.15	0.15
		Ni	0.04	0.04	0.04	0.04	0.04
		K/Na	0.008	0.008	0.008	0.008	0.008
		Mn	0.05	0.05	0.05	0.05	0.05
		Sn/Ca	0.01	0.01	0.01	0.01	0.01
		Al	0.015	0.015	0.015	0.015	0.015
		N	0.25	0.20	0.25	0.25	0.25
		Ti	0.20	0.30	0.30	0.30	0.30
		W	0.20	0.35	0.35	0.35	0.35
		O	0.2, 0.25, 0.35
4	Size		1.0-1.2, 1.2-1.5, 1.5-3.5 (FSSS µm)

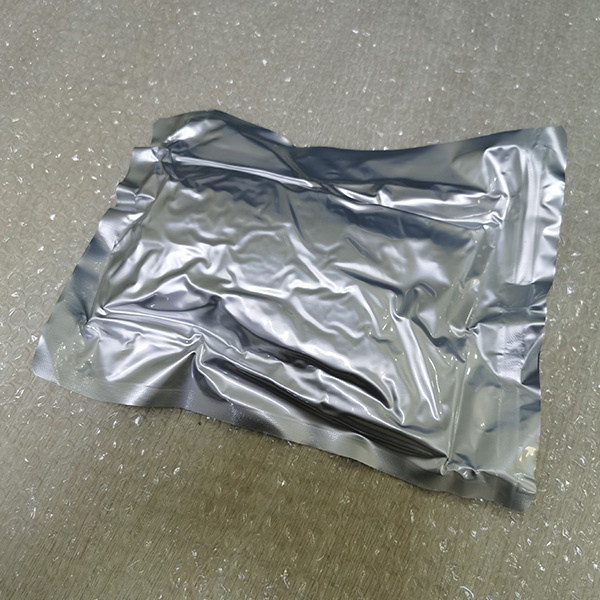

5	Packing		2kgs in composite bag with iron drum outside, 20kg net

Tantalum Niobium Carbide TaNbC solid solution powder can be extensively used as raw material applied in hard alloys industry for the production of cemented carbide tools as an additive to effectively inhibit the grain growth of hard alloys. Tantalum Niobium Carbide is also usually used for the preparation of refractory material, high-temperature, wear-resistant and spraying material, welding material, high-temperature radiation resistant material, metal ceramic material, high-temperature vacuum devices in mechanical processing, electronic information, metallurgy and minerals, aerospace and other industry fields. Tantalum Niobium Carbide can also be used to manufacture multiphase materials to form compound solid solutions with rare metal carbides such as WC, TiC, CrC, TiN, ZrC, HfC etc, which can improve the red hardness, wear resistance, oxidation resistance, high temperature resistance and corrosion resistance of alloy cermets materials.
