Zinc Selenide ZnSe | CdSe PbSe SnSe 4N 5N 6N

Description

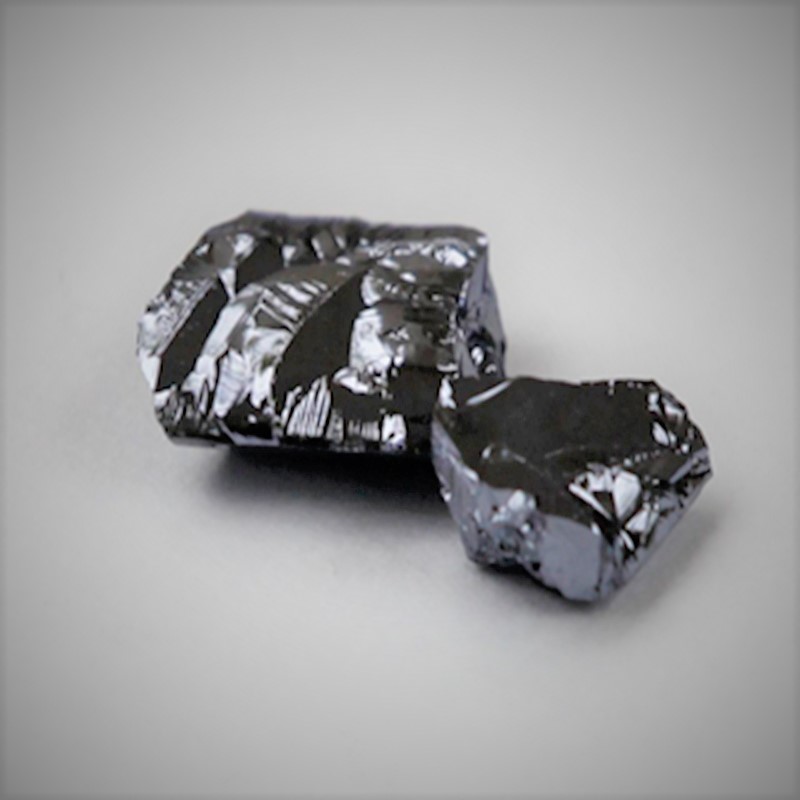

Zinc Selenide ZnSe, 99.99% 4N and 99.999% 5N purity, molecular weight 144.35, density 5.264g/cm³, CAS No. 1315-09-9, melting point 1525°C, insoluble in water and decomposes in dilute nitric acid, is a light yellow polycrystalline in both hexagonal (Wurzite) and cubic (Zincblende) crystal structure. It is a II-VI group wide-bandgap semiconductor with a band-gap of about 2.70 eV at 25°C. Zinc Selenide is the most popular material for infrared applications and as a high optical quality material. Zinc Selenide ZnSe is grown by chemical vapor deposition CVD techniques including MOVPE and vacuum evaporation. With wide band gap, low resistivity, high photosensitivity, low absorption of energy, good imaging characteristic, homogeneity and uniformity, Zinc Selenide ZnSe is used for optical components, high power laser window, high resolution forward looking infrared (FLIR) thermal imaging systems, CO₂ laser optics and power laser system, II-VI light-emitting diodes and diode lasers, industrial thermal radiometers, infrared spectroscopy. Selenide compound find many application as electrolyte material, semiconductor dopant, QLED display, IC field and other material fields etc.

Delivery

Zinc Selenide ZnSe and Cadmium Selenide CdSe, Lead Selenide PbSe, Tin Selenide SnSe at Western Minmetals (SC) Corporation with 99.99% 4N and 99.999% 5N purity are in size of micropowder -60mesh, -80mesh, nanopartical, granule 1-6mm, lump 1-20mm, chunk, blank, bar, bulk crystal and single crystal etc or as customized specification to reach the perfect solution.

Inquiry now

Details

Tags

Technical Specification

Selenide Compounds

Selenide Compounds mainly refer to the metal elements and metalloid compounds, which have stoichiometric composition changing within a certain range to form a compound-based solid solution. Inter-metallic compound is of its excellent properties between the metal and ceramic, and become an important branch of the new structural materials. Selenide compound of Antimony Selenide Sb₂Se₃, Arsenic Selenide As₂Se₃, Bismuth Selenide Bi₂Se₃, Cadmium Selenide CdSe, Copper Selenide CuSe, Gallium Selenide Ga₂Se₃, Indium Selenide In₂Se_3,Lead Selenide PbSe,Molybdenum Selenide MoSe₂, Tin Selenide SnSe, Tungsten Selenide WSe₂, Zinc Selenide ZnSe etc and its (Li, Na, K, Be, Mg, Ca) compounds and Rare Earth compounds can be synthesized in form of powder, granule, lump, bar and substrate.

No.	Item	Standard Specification
No.	Item	Formula	Purity	Size & Packing
1	Antimony Selenide	Sb₂Se₃	4N 5N	-60mesh, -80mesh powder, 1-20mm irregular lump, 1-6mm granule, target or blank. 500g or 1000g in polyethylene bottle or composite bag, carton box outside. Selenide compounds composition is available upon request. Special specification and application can be customized for perfect solution
2	Arsenic Selenide	As₂Se₃	5N 6N
3	Bismuth Selenide	Bi₂Se₃	4N 5N
4	Cadmium Selenide	CdSe	5N 6N
5	Copper Selenide	CuSe	4N 5N
6	Gallium Selenide	Ga₂Se₃	4N 5N
7	Indium Selenide	In₂Se₃	4N 5N
8	Lead Selenide	PbSe	4N
9	Molybdenum Selenide	MoSe2	4N 5N
10	Tin Selenide	SnSe	4N 5N
11	Tungsten Selenide	_WSe2	3N 4N
12	Zinc Selenide	ZnSe	4N 5N

Cadmium Selenide

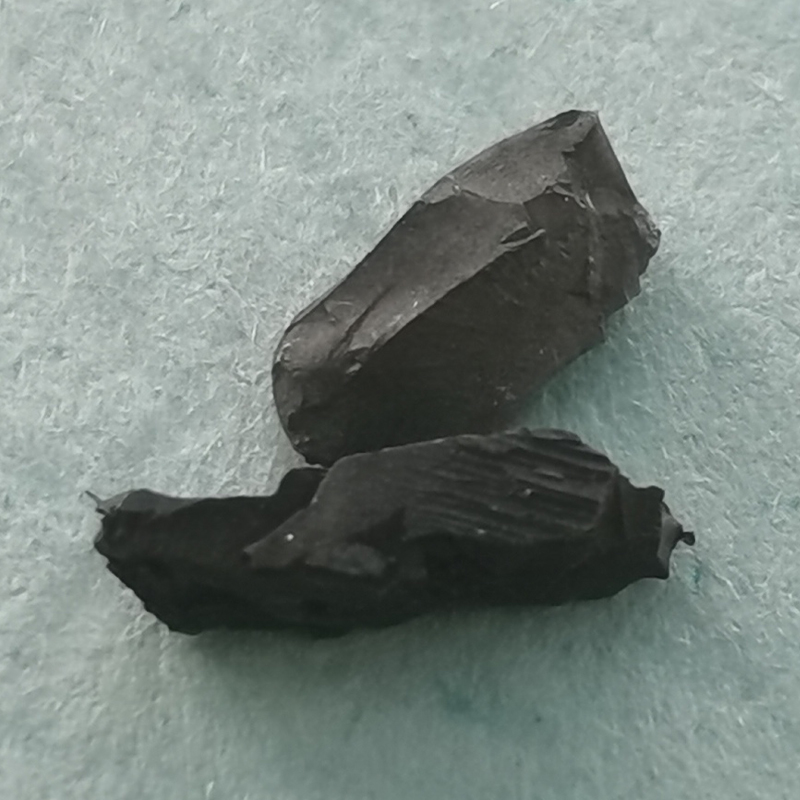

Cadmium Selenide CdSe, red to black crystal, most common Wurtzite hexagonal structure, CAS 1306-24-7, molecular weight 191.377, density 5.8g/cm³, melting point 1350°C, insoluble in Water, is a solid, binary primarily ionic compound of cadmium and selenium. Polycrystalline compounds is synthesized by the High-Pressure Vertical Bridgman method or High-Pressure Vertical Zone Melting, or distillation and CVD synthesis, which is used for growing CdSe single crystal, CdSe evaporation material, namely for making photocell, rectifier, luminous paint, etc. Cadmium Selenide with wurtzite crystal structure is an important II-VI n-type semiconductor, and has a band gap of 1.74 eV. CdSe nanoparticle by several production methods of arrested precipitation in solution, synthesis in structured media, high temperature pyrolysis, sonochemical, and radiolytic methods is of 1–100 nm in size, exhibits a property known as quantum confinement, they are finding applications in opto-electronic devices such as laser diodes that cover a large part of the electromagnetic spectrum, especially useful as a component of photocatalysts, use in biomedical imaging applications, and is used in windows for instruments using infra-red (IR) light, nanosensing and high-efficiency solar cells. Cadmium Selenide CdSe at Western Minmetals (SC) Corporation with purity of 99.99% 4N, 99.999% 5N and 99.9999% 6N can be delivered in form of powder, granule, lump, chunk, blank, bulk crystal and single crystal etc or as customized specification.

No.	Item	Purity	Impurity ppm max each	Size
1	Cadmium Selenide CdSe	5N 99.999%	Ag/Cu/Ca/Mg/Ni/Bi/Sb 0.3, Al/Sn/Fe 0.5, Zn/Pb/As 1.0	-60mesh
2	Packing	100g or 1000g in polyethylene bottle or composite bag, carton box outside.

Lead Selenide

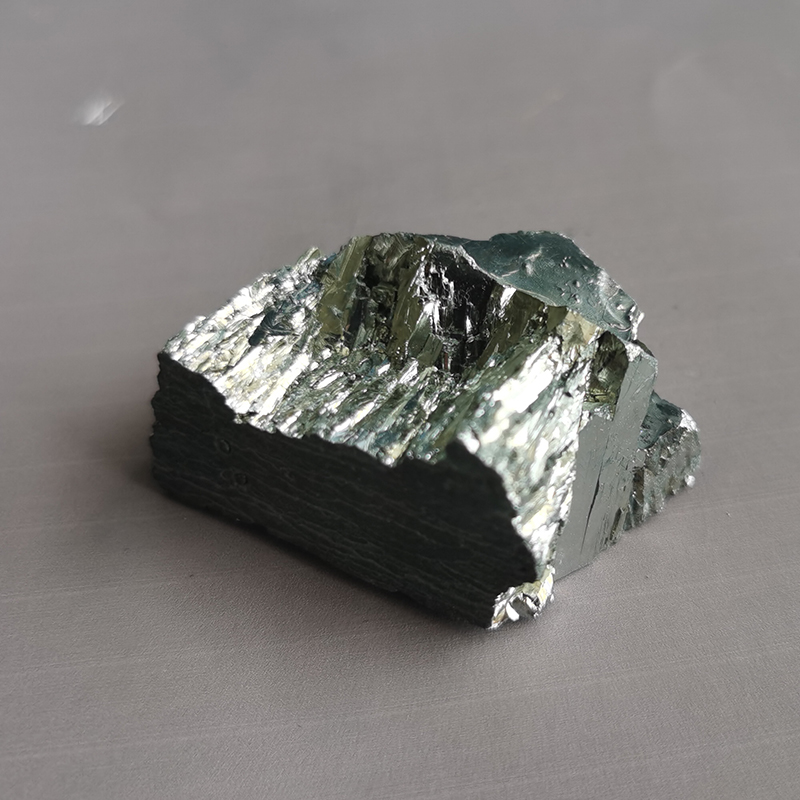

Lead Selenide PbSe, gray or grayish black crystalline solid, a selenide of lead, cubic crystal of the NaCl structure, CAS 12069-00-0, MW 286.16,density 8.10g/cm³, melting 1078°C, is insoluble in water but soluble in nitric acid and hot concentrated hydrochloric acid. Lead Selenide is prepared by mixing high-purity lead and selenium in stoichiometric proportion and heating them in quartz ampoules to 1100-1150° in furnace or reduction of lead selenite with hydrogen. Lead selenide is a semiconductor material of direct bandgap of 0.27 eV at room temperature, which performs efficiently at low temperatures without the need for cooling. As a sensitive material to the infrared radiation, PbSe has unique and outstanding characteristics making this material an excellent detector of low cost high speed infrared imagers for thermal imaging operating at wavelengths between 1.5–5.2μm, and to make photosensitive resistance. Lead selenide nanocrystal can be used as quantum dots, for example in nanocrystal solar cells. Meanwhile, Lead Selenide is a high performance thermoelectric material which has a number of industrial applications. Lead Selenide PbSe at Western Minmetals (SC) Corporation with purity of 99.99% 4N can be delivered in form of powder, granule, lump, chunk, blank, bulk crystal and single crystal etc or as customized specification.

Tin Selenide

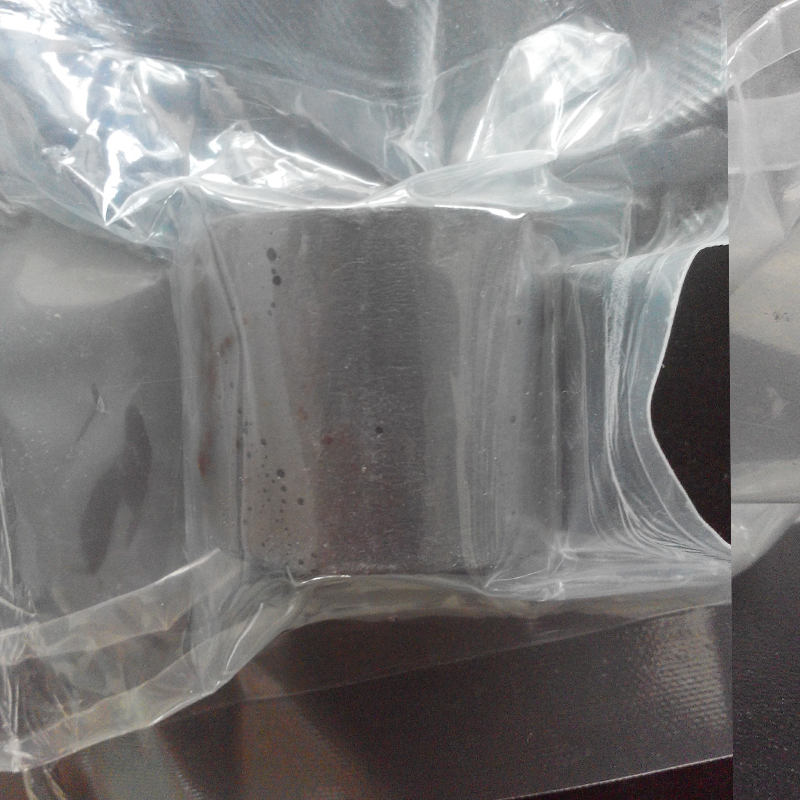

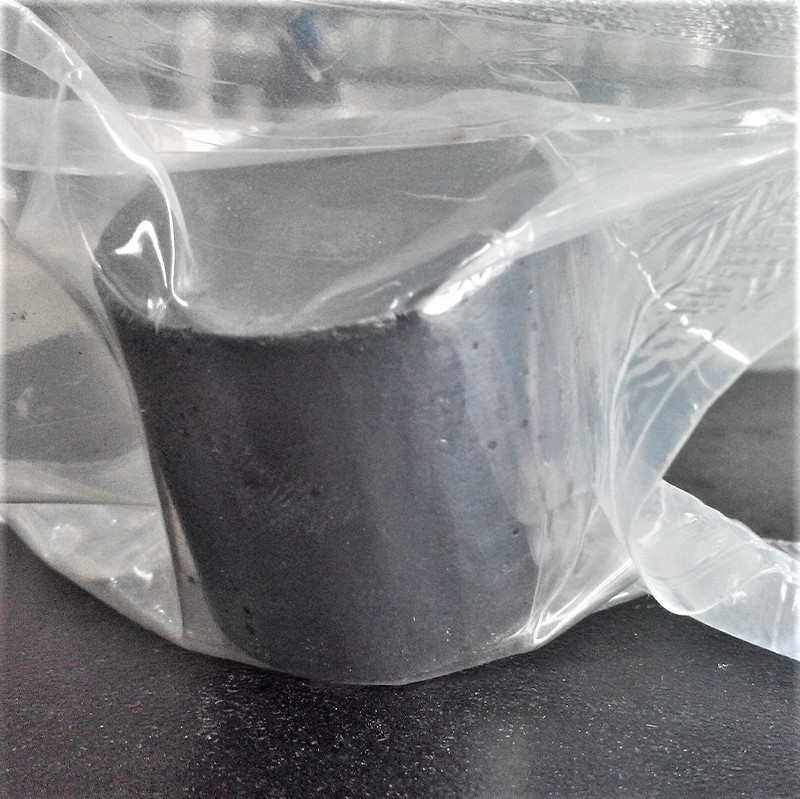

Tin Selenide SnSe, gray solid crystal with rhombic crystal structure, molecular weight 199.68, density 6.18g/cm³, melting point 861°C, can be dissolved in alkali metal sulfide and selenide, and easily soluble in nitric acid and aqua regia but insoluble in water. SnSe compound is typical layered material synthesized by the various methods employed for the phase-pure SnSe like hot injection, facile surfactant-free synthesis, thermal evaporation, insert gas condensation etc. Tin Selenide is an important IV-VI semiconductor, the indirect band gap of bulk materials is 0.90 EV and the direct band gap is 1.30 eV, which can absorb most of the solar spectrum, and been extensively explored in the thermoelectric fields and photovoltaic PV application for its extraordinary advantages including excellent optoelectronic properties, absence of toxicity, economically raw material, relative abundance, environmental friendliness and chemical stability. As tin-based binary chalcogenide compound, the electronic, thermoelectric, and optoelectronic characteristics of bulk crystals, thin films, and nanostructures of Tin Selenide SnSe finds novel applications in the next generation electronic, optical, optoelectronic, flexible systems, Li-ion rechargeable batteries, super capacitors, phase-change memory devices and topological insulators. Tin Selenide SnSeat Western Minmetals (SC) Corporation with purity of 99.99% 4N, 99.999% 5N can be delivered in form of powder, granule, lump, chunk, blank, bulk crystal and single crystal etc or as customized specification.
